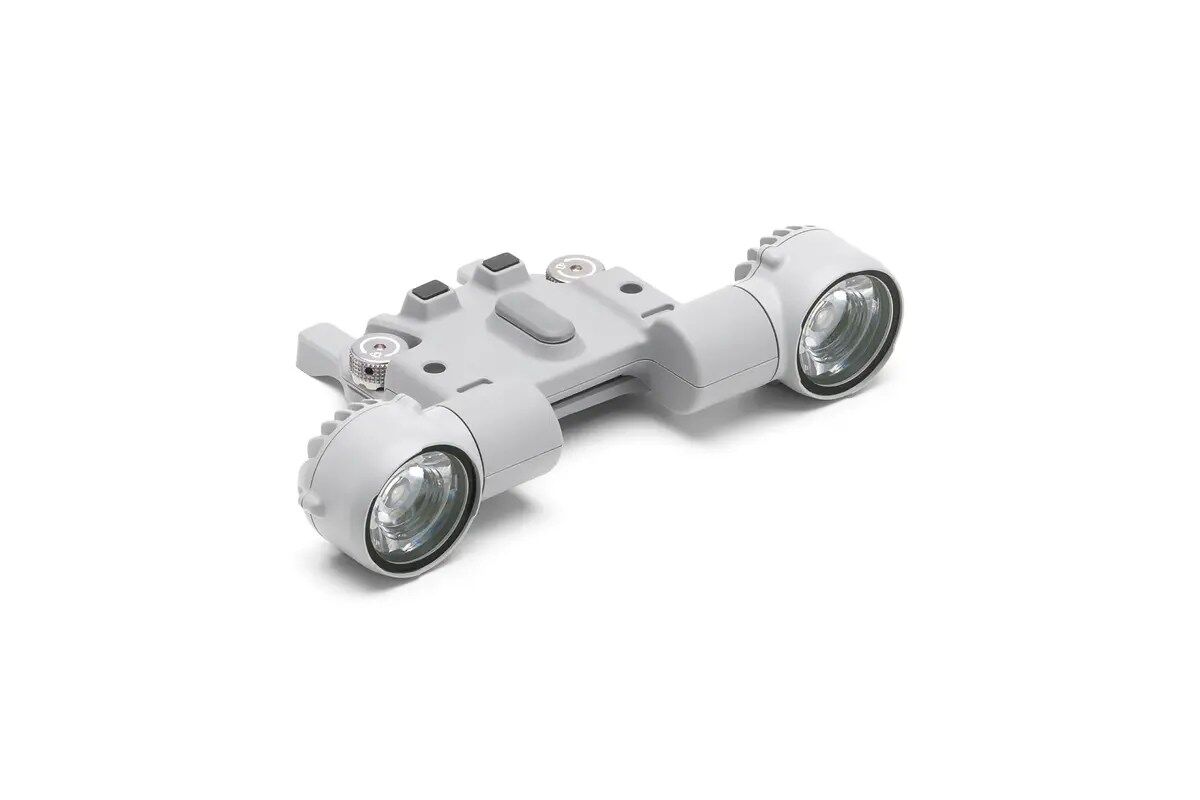

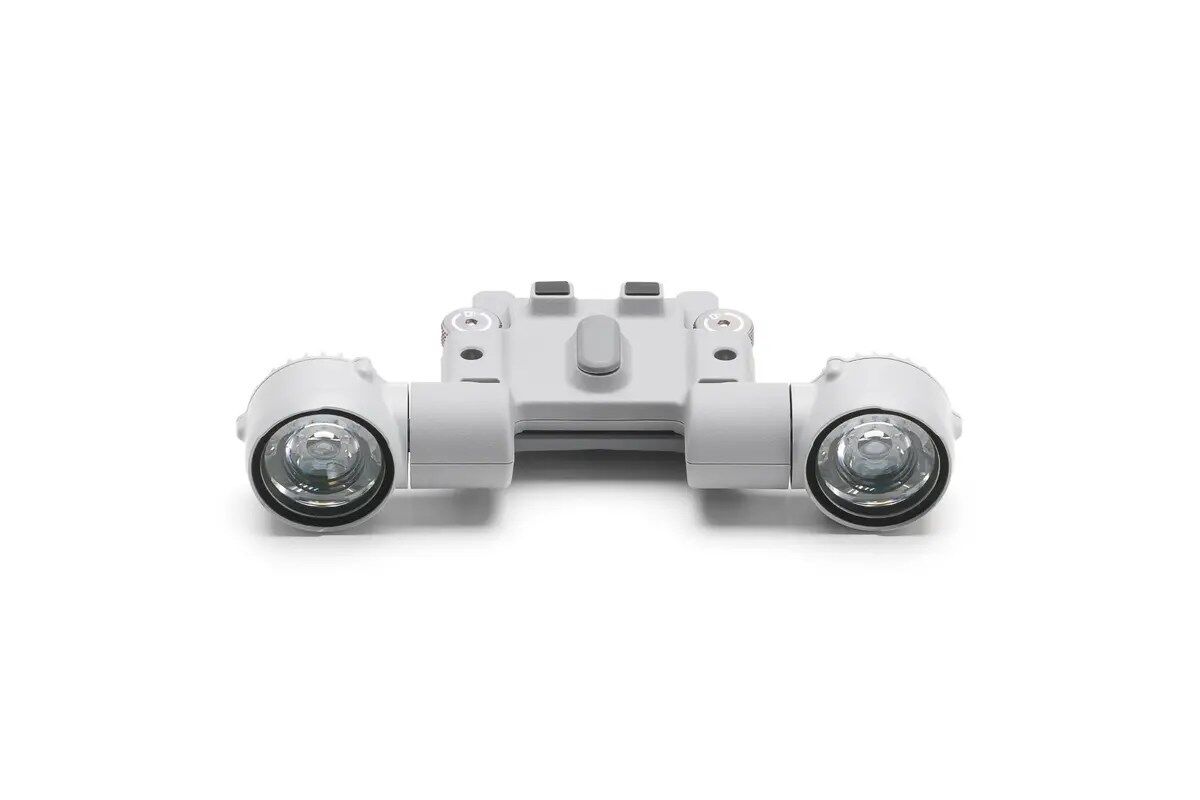

DJI AL1 Spotlight

DJI Matrice 4 Series AL1 Spotlight

Precision Illumination | Gimbal-Integrated | 100m Visibility

Key Features:

💡 Dual Illumination Modes – Choose between Always-On and Strobe for adaptable lighting needs
🎥 Gimbal-Integrated Tracking – Synchronizes with the camera for precise illumination alignment
🌍 Wide FOV Mode – Expands the illuminated area for better visibility in wide-angle scenarios
🔊 Independent Operation – Use the spotlight and speaker separately or together
🔦 100-Meter Effective Range – Provides clear illumination even in challenging environments

Operational Benefits:

✔ Enhanced Visibility – 4.3 lux @ 100m ensures reliable lighting for search & rescue, inspections, and night operations

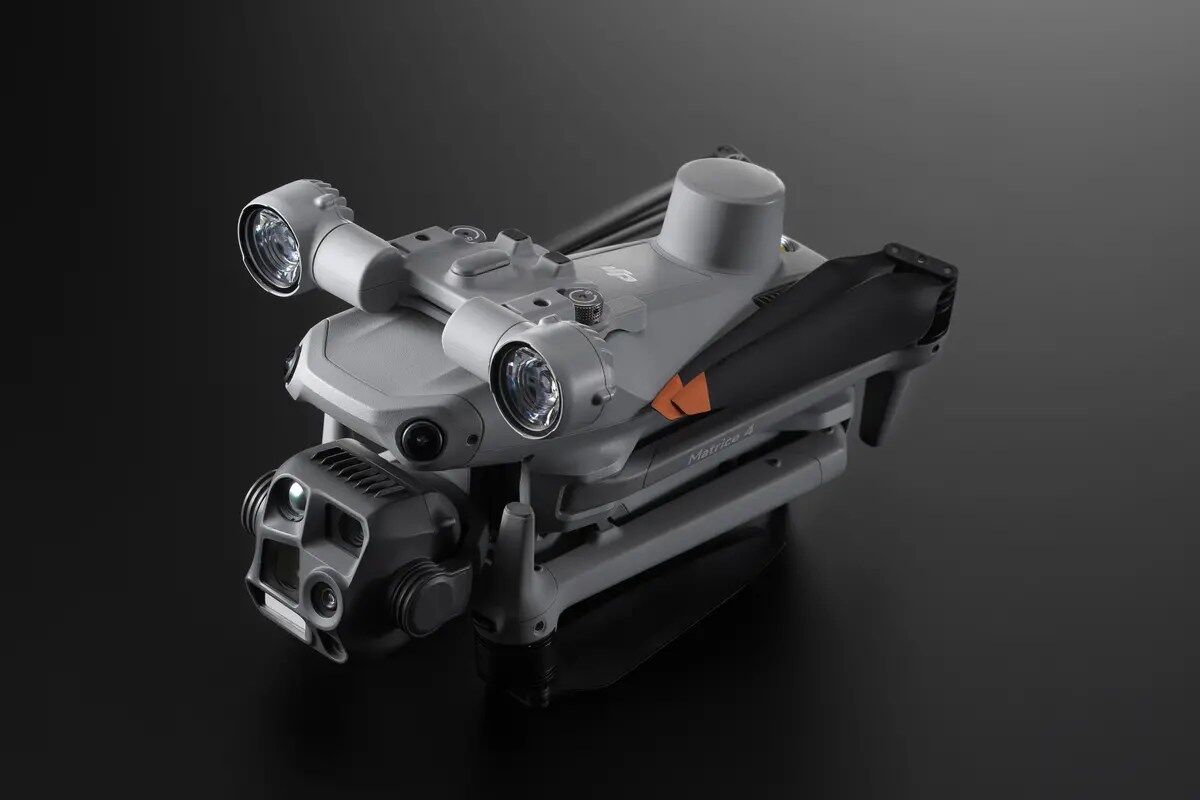

✔ Seamless Integration – Fully compatible with DJI Matrice 4 Series, mounted via a quick-release system
✔ Wide Illumination Coverage – Up to 2,200 m² @ 100m in Wide FOV Mode

Technical Specifications:

📏 Weight: 99 g (with bracket) | 91 g (without bracket)
📐 Dimensions: 95 × 164 × 30 mm (with bracket) | *79 × 164 × 28 mm (without bracket)
⚡ Power: Max 32W
🌟 Illuminance:
    • 4.3 ± 0.2 lux @ 100m
    • 17 ± 0.2 lux @ 50m
📡 Illumination Area:
    • 1,300 m² @ 100m (Normal Mode)
    • 2,200 m² @ 100m (Wide FOV Mode)
🎯 Effective Illumination Angle: 23°
⚙ Gimbal Performance:
    • Tilt Range: -135° to 45° (mechanical), -90° to 35° (controllable)
    • Max Tilt Speed: 120°/s
    • Alignment Accuracy: ±0.1°
🌡 Operating Temperature: -4°F to 122°F (-20°C to 50°C)
🛠 Mounting: Quick-release with hand-tightened screws

Tips for Use:

✔ Secure Installation – Use the included hex key to tighten screws properly and re-check after installation
✔ Firmware Updates – Activate the spotlight and ensure firmware is up to date
✔ Safe Operation:
    • Avoid shining the light directly into people’s eyes
    • Fly cautiously as the Matrice 4’s propulsion & vision systems may be affected
    • Handle with care as extended use may cause heating

What’s Included in the Box?

✔ Spotlight ×1 💡 (Gimbal-synced illumination for DJI Matrice 4 Series drones)
✔ Spare Screws ×2 🔩 (For secure mounting and adjustments)
✔ Hex Key ×1 🔧 (For quick and easy installation)

🚁 Enhance your DJI Matrice 4 Series missions with high-performance illumination—ideal for night operations, inspections, and search & rescue!
