DJI AS1 Speaker

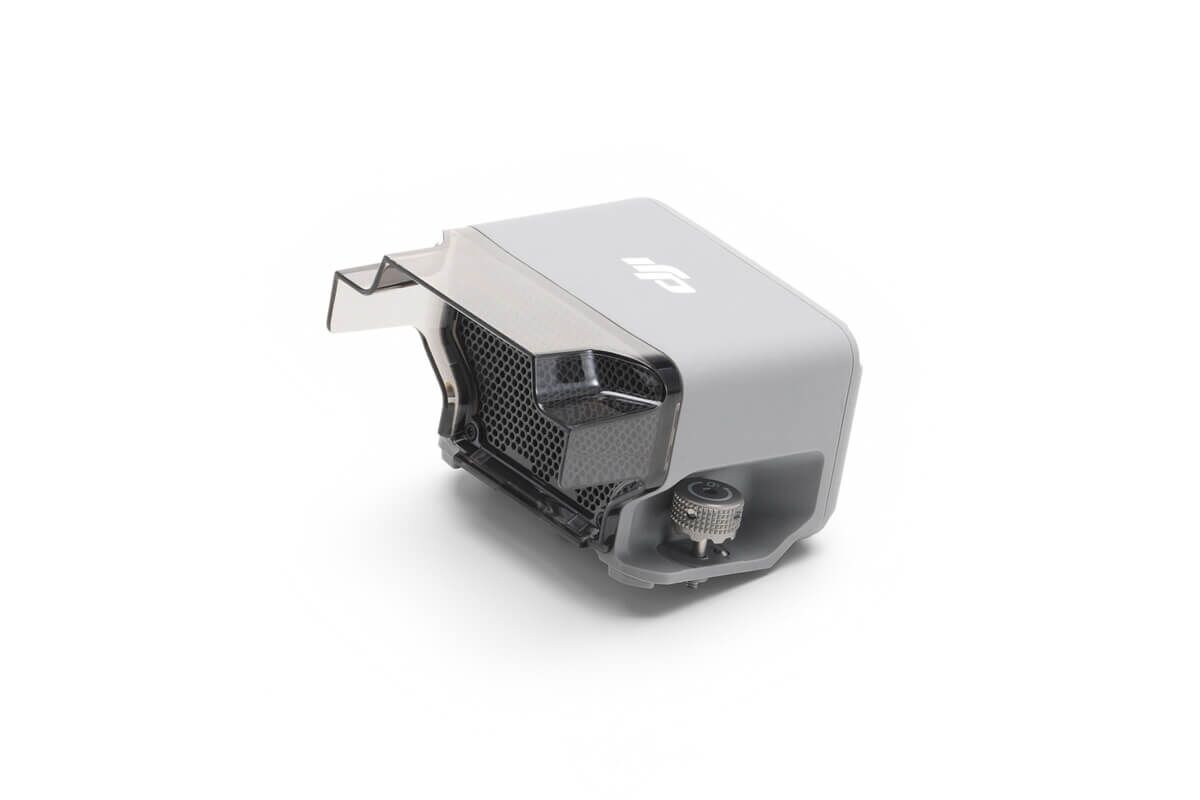

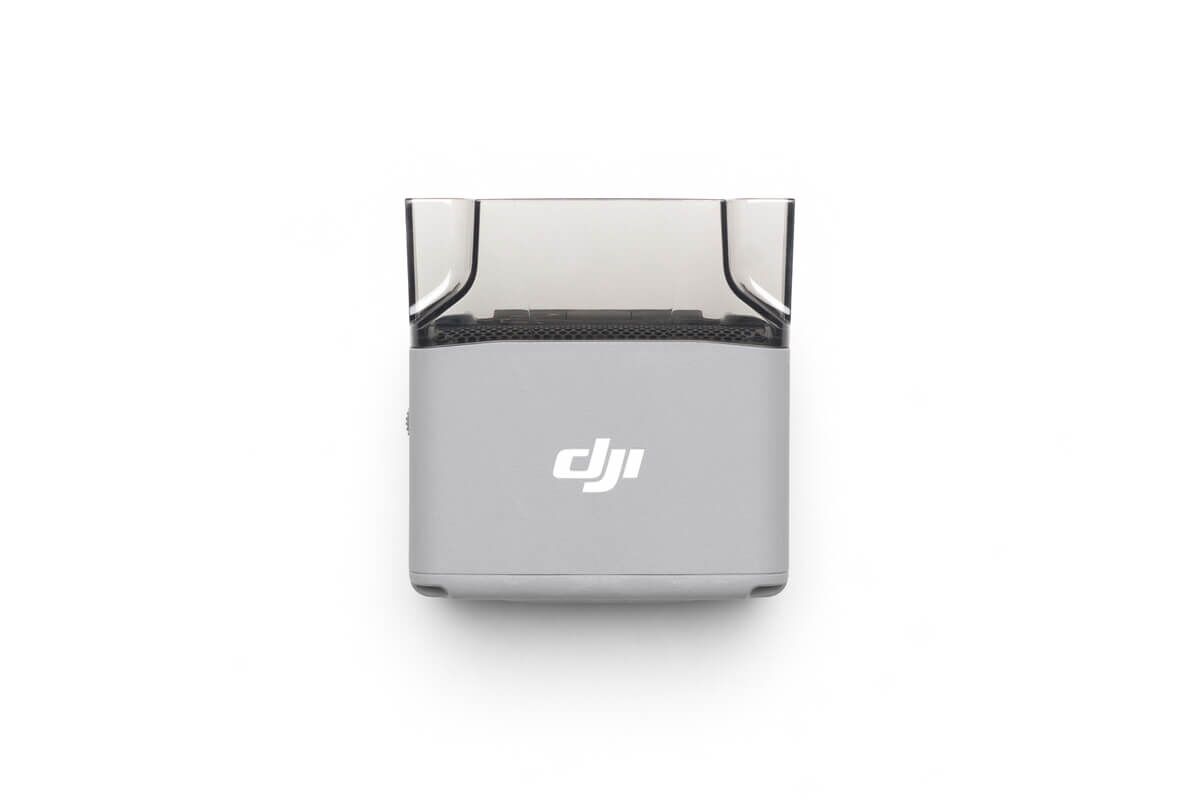

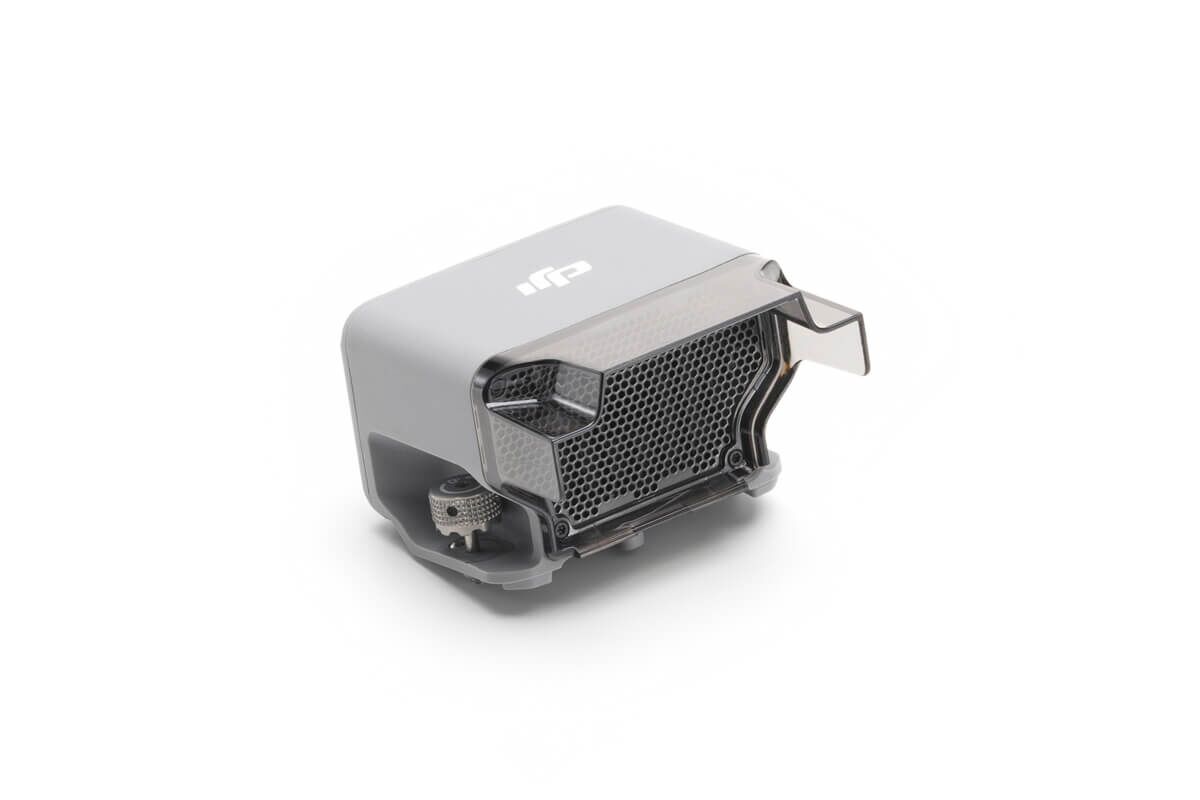

DJI Matrice 4 Series AS1 Speaker

High-Volume | 300m Broadcast Range | Real-Time Communication

Key Features:

🔊 Powerful Audio Output – Delivers 114dB at 1 meter for loud and clear communication
📡 300m Effective Broadcast Range – Ensures messages are heard over long distances
🎙 Multiple Broadcast Modes – Supports real-time broadcasting, recorded playback, media imports, and text-to-speech
🔄 Echo Suppression Technology – Provides clear and distortion-free audio in real-time communication
🔦 Independent or Combined Use – Operates alone or with the spotlight to suit various operational needs

Operational Benefits:

✔ Long-Distance Coverage – Ideal for emergency response, public safety, and aerial announcements
✔ Seamless DJI Integration – Fully compatible with DJI Matrice 4 Series
✔ Clear & Versatile Audio Options – Choose live speech, pre-recorded messages, or text-to-speech conversion

Technical Specifications:

📏 Weight: 92.5g (with bracket) | 90g (without bracket)
📐 Dimensions: 73 × 70 × 52 mm (with bracket) | *73 × 70 × 47 mm (without bracket)
⚡ Max Power: 15W
🔊 Max Volume: 114 dB @ 1m
📡 Effective Broadcast Range: 300m
📀 Broadcast Modes:
    • Real-time broadcasting (with echo suppression)
    • Recorded message playback
    • Media import (simultaneous transmission & playback supported)
    • Text-to-speech conversion
🌡 Operating Temperature: -4°F to 122°F (-20°C to 50°C)
🛠 Mounting: Quick-release with hand-tightened screws

Tips for Use:

✔ Secure Installation – Use the included hex key to tighten screws and re-check after installation

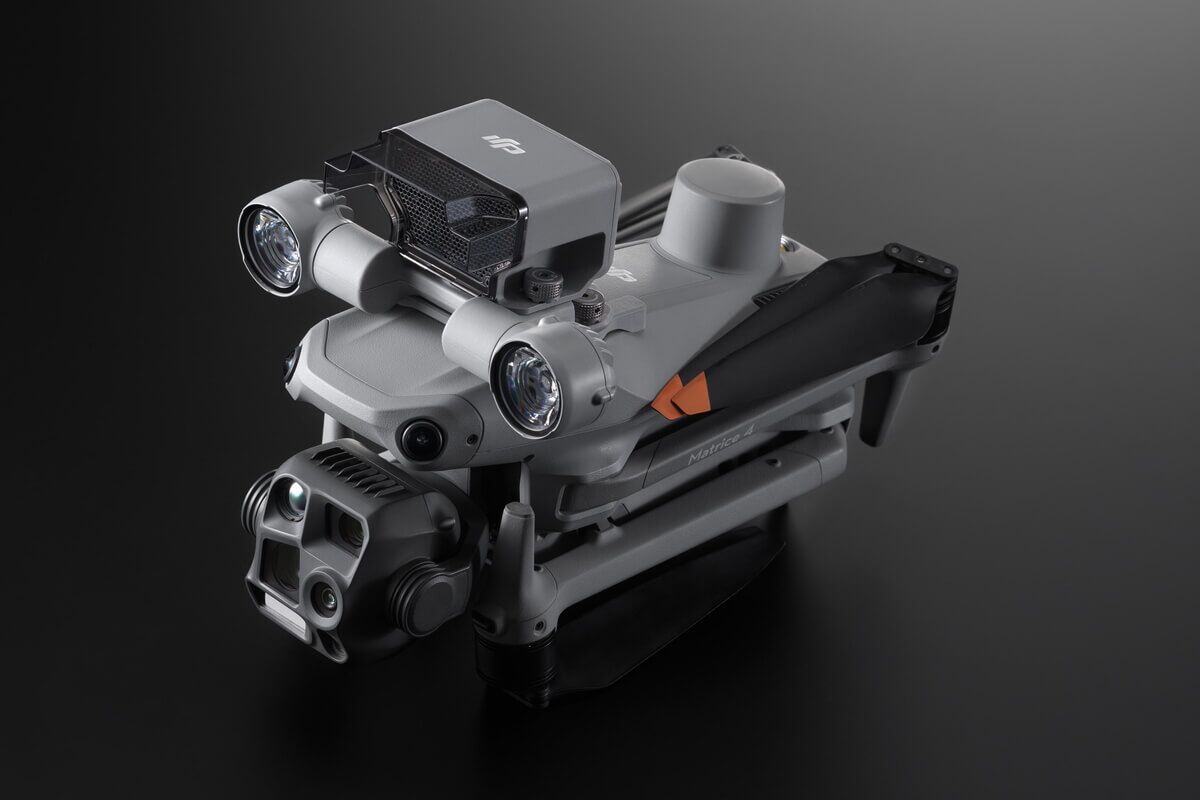

✔ Speaker & Spotlight Usage – Remove the speaker adapter bracket when using the speaker and spotlight together
✔ Calibration & Updates:
    • Activate the speaker and calibrate the aircraft compass after installation
    • Update firmware promptly if an update is available
✔ Safe Operation:
    • Avoid using near people or in noise-sensitive areas (high volume may cause disturbances or injuries)
    • Do not play single-frequency sounds (to prevent damage to the speaker)

What’s Included in the Box?

✔ Speaker ×1 🔊 (Loud, clear audio for DJI Matrice 4 Series drones)
✔ Spare Adapter Bracket ×1 🛠 (For secure mounting adjustments)
✔ Hex Key ×1 🔧 (For quick and easy installation)

🚁 Upgrade your DJI Matrice 4 Series operations with high-powered audio—perfect for search and rescue, law enforcement, and aerial communication!
