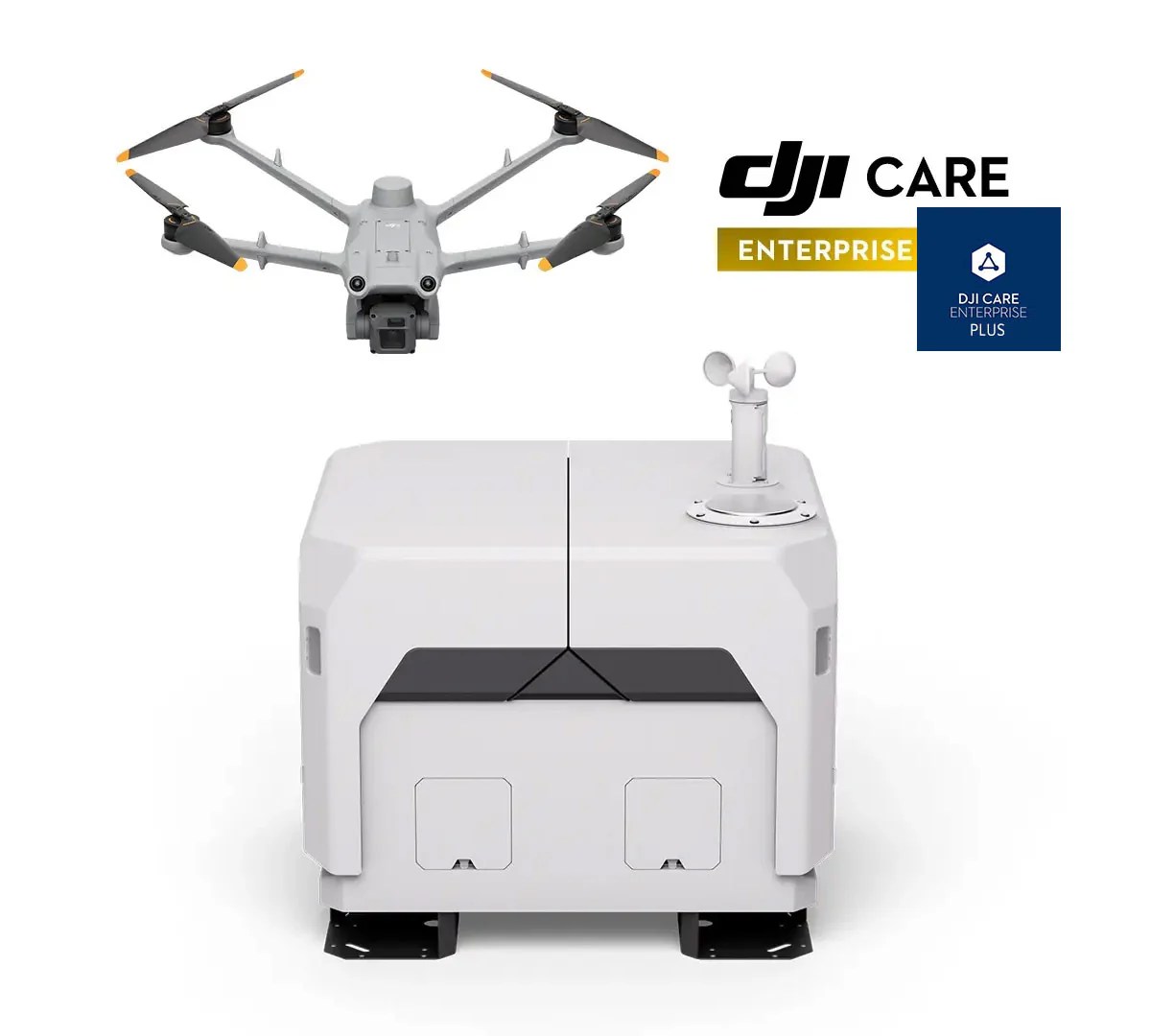

DJI Dock 2 with Matrice 3D- Enterprise Care Plus

📦 In the Box

• (1) Matrice 3D Aircraft
• (1) DJI Dock 2
• (1) CW Propellers (Pair)
• (1) CCW Propellers (Pair)
• DJI Care Enterprise Care Plus

🚁 DJI Matrice 3D – High-Performance Aircraft

Cameras:

• Wide-Angle Camera:
  • 4/3 CMOS
  • 24mm format equivalent
  • 20MP effective pixels
  • Mechanical shutter
• Tele Camera:
  • 1/2-inch CMOS
  • 162mm format equivalent
  • 12MP effective pixels

Performance Specs:

• IP54: Dustproof and waterproof
• 50 mins: Max flight time
• 10 km: Max effective operating radius
• 6-Directional: Obstacle sensing system
• 400 cycles: Battery lifespan
• Integrated RTK Module: ±3cm positioning accuracy

🛠️ DJI Dock 2 – Easy Operation, Superior Results

Design & Protection:

• 75% smaller and 68% lighter than Dock 1
• IP55: Dustproof and waterproof
• 5-hour backup battery during power outages
• 6-month maintenance interval

Integrated Environmental Monitoring System:

• Real-time weather monitoring: rainfall, wind speed, temperature
• Online weather forecasting with automatic task termination during unsafe conditions

Efficient Deployment:

• Vision-based site evaluation: Reduces setup time from 5 hours to 12 minutes
• Precise landing system with improved stability using image recognition and a ramp-centering design

⚡ Steady Operation & Reliability

Quick Takeoff & Charging:

• 45-second rapid takeoff with dual RTK antennas
• 32-minute fast charging (20% → 90%)

Dual-Camera Monitoring:

• Internal and external fisheye cameras for real-time remote observation

🌐 Cloud-Based Operation & AI Capabilities

Cloud Mapping:

• 3D models generated with DJI FlightHub 2
• Models can be annotated, measured, and downloaded

Flight Route Editor:

• 3D route visualization with first-person preview
• Simulated imaging results for enhanced accuracy

AI Spot-Check:

• Frame areas in the 3D model for automated, consistent image capture

FlyTo Tasks:

• Click-and-go operation:
  • Automatic route planning
  • Safe and efficient path navigation

🔌 Open Ecosystem & Expansion

Third-Party Payloads:

• Connect payloads like loudspeakers or spotlights via E-Port
• E-Port Lite supports parachutes for added safety

Edge Computing:

• Media pre-processing capabilities with edge computing interface

Private Deployment with Cloud API:

• Customize management systems with Cloud API
• Seamless connection to third-party platforms

Cloud-to-Cloud Coordination:

• FlightHub Sync for third-party cloud platform integration

DJI Terra API:

• Integrate DJI Terra’s 2D/3D mapping into dock management systems
